H05VVC4V5-K Cable

What is H05VVC4V5-K Cable?

The H05VVC4V5-K cable is a low-voltage, unarmored and shielded flexible control and instrumentation cable featuring Class 5 fine-stranded bare copper conductors, PVC TI 2 insulation, an overall tinned copper wire braid (TCWB) screen, and an oil-resistant PVC TM2 outer sheath complying with VDE 0281-13, VDE 0482-332-1-2, and IEC 60332-1 standards. It is designed for fixed wiring and moved power or process control distribution up to 300/500V in industrial automation and machine tool applications requiring stringent EMC compliance.

Engineered to mitigate electrical noise and withstand aggressive chemical contamination on factory floors, the cable incorporates a high-density braided tinned copper shield that achieves a low transfer impedance of 250 Ω/km to prevent signal cross-talk and high-frequency interference. Paired with an EN 60811-2-1 certified PVC TM2 outer compound, it provides enduring resistance against common industrial mineral oils, coolants, and mechanical abrasion in complex production lines.

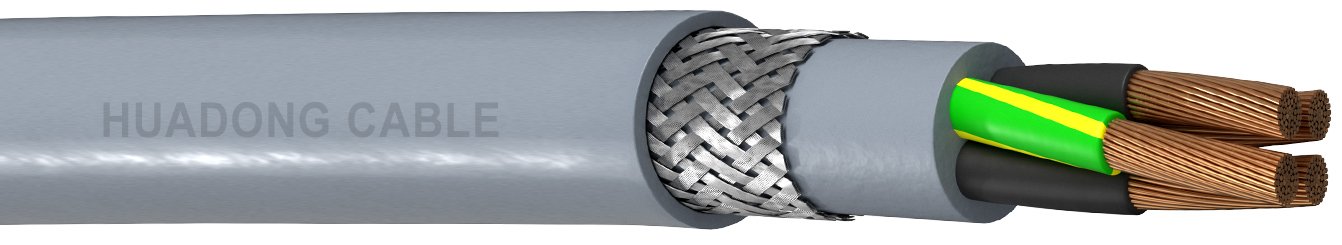

H05VVC4V5-K Cable Construction

• Conductor: Class 5 fine-stranded bare copper conductors per IEC/EN 60228 delivering superior flexibility and low electrical resistance.
• Insulation: Polyvinyl Chloride (PVC) compound type TI 2 offering dependable dielectric strength up to +70°C.
• Bedding / Inner Layer: Compact core assembly designed for flexible industrial routing.
• Screen: Tinned Copper Wire Braid (TCWB) providing 360-degree electromagnetic shielding with 250 Ω/km transfer impedance.
• Outer Sheath: Specially formulated oil- and chemical-resistant Polyvinyl Chloride (PVC) compound type TM2, flame retardant per IEC 60332-1.
• Core Identification: Black cores with consecutive white numbering + Green/Yellow protective earth conductor.
• Sheath Colour: Grey.

Applications

H05VVC4V5-K cables are specifically developed for signal and power interconnection in industrial machinery, automated assembly plants, and control panels where equipment is exposed to lubricating oils, chemical coolants, and intense electromagnetic fields. Their flexible Class 5 conductors and oil-resistant TM2 sheath ensure operational longevity in both static and free-moving setups without tensile stress.

Typical installation environments include:

• CNC Machine Tools & Production Lines: Power and control wiring exposed to cutting fluids, greases, and continuous spray.
• Variable Frequency Drives (VFD) & Servo Systems: Interconnect lines requiring suppression of high-frequency electromagnetic interference (EMC).
• Industrial Instrumentation & Process Control: Connecting sensors, measurement instruments, and PLCs across manufacturing plants.
• Conveyor & Material Handling Equipment: Free-moving flexible applications operating within dry, damp, or wet industrial workshops.

Specifications & Dimensions

The H05VVC4V5-K cable series covers multi-conductor configurations from 3 cores up to 34 cores, with nominal conductor cross-sections spanning 0.75mm², 1.0mm², 1.5mm², and 2.5mm². Operating at a rated voltage of 300/500V (2kV test voltage), the cable supports fixed installations from -40°C to +70°C and moved applications from -5°C to +70°C, maintaining a minimum bending radius of 6× OD (fixed) and 20× OD (moved). All conductor DC resistance limits (26 Ω/km for 0.75mm² down to 7.98 Ω/km for 2.5mm²), overall diameters, and nominal weights strictly align with VDE 0281-13 and European harmonized standards.

Standards

Huadong Cable Group manufactures and batch-tests H05VVC4V5-K cables to ensure full compliance with international electrical safety and oil resistance directives:

Design Standards: VDE 0281-13, VDE 0482-332-1-2, EN 60811-2-1 (Oil and Grease Resistance)
Flame Retardancy: IEC 60332-1 (Self-extinguishing)
Voltage Rating (Uo/U): 300/500V (Test Voltage: 2kV)
Temperature Spectrum: Fixed: -40°C to +70°C; Moved/Installation: -5°C to +70°C; Max Conductor Temp: +70°C
Regulatory Compliance: CE Marked, European Regulation EN 50575 (CPR Compliant), Low Voltage Directive 2014/35/EU, RoHS Directive 2015/65/EU, REACH EC 1907/2006

Frequently Asked Questions

Q: What does the designation ‘H05VVC4V5-K’ signify under European harmonized cable standards?
A: According to harmonized coding, ‘H05’ indicates a 300/500V rated voltage, ‘V’ denotes PVC insulation, ‘V’ represents inner PVC bedding, ‘C4’ specifies the tinned copper wire braid screen, ‘V5’ designates the oil-resistant PVC outer sheath, and ‘-K’ signifies Class 5 fine-stranded flexible copper conductors.

Q: How does the TCWB screen with 250 Ω/km transfer impedance benefit automated machinery?
A: The Tinned Copper Wire Braid (TCWB) screen creates a low-resistance barrier that effectively confines internal radiation and reflects external electromagnetic fields, safeguarding analog and digital control signals from motor drive distortion and electrical noise.

Q: What is the primary operational advantage of the PVC TM2 outer sheath over standard PVC?
A: The specialized PVC TM2 compound conforms to EN 60811-2-1 oil resistance standards, preventing jacket swelling, hardening, or cracking when continuously exposed to industrial cutting oils, mineral greases, and coolants.

Q: What payment terms does Huadong Cable Group accept for international export contracts?
A: We provide standard international commercial terms including Telegraphic Transfer (T/T) and 100% Irrevocable Letter of Credit (L/C) at sight for engineering contractors and industrial machinery OEMs.

Why Choose Huadong Cable?

Huadong Cable Group manufactures H05VVC4V5-K screened control cables in strict compliance with VDE 0281-13 and EN 60811-2-1 standards, backed by certified IEC 60332-1 flame-retardant safety validation. To ensure maximum signal precision and minimal voltage drop across industrial automation circuits, we utilize high-conductivity Class 5 oxygen-free bare copper conductors. When paired with high-dielectric PVC TI 2 insulation, a high-density TCWB shield, and a specialized oil-resistant PVC TM2 outer jacket, the cable provides robust electromagnetic compatibility and chemical resilience, preventing jacket degradation in oil-drenched machine tool workshops.

Backed by 20 years of precision cable engineering, Huadong Cable Group operates advanced extrusion and braided screening facilities certified to CE, CPR (EN 50575), RoHS, and REACH standards. We eliminate trading intermediaries to provide factory-direct pricing, 100% Mill Test Certificates (MTC) tested in accredited laboratories, custom drum lengths on ISPM 15 export wooden reels, and reliable door-to-port logistics for machine builders and automation integrators worldwide.
